Y32 Hydraulic Press Machine
Models List
-
Y32-40
-
Y32-63
-
Y32-100
-
Y32-100A
-
Y32-160
-
Y32-200
-
Y32-315
-
Y32-400
-
Y32-500
-
Y32-500C
-
Y32-630
-
Y32-800
-
Y32-1000
-
Y32-1250
-
Y32-1600
Description
Structure:

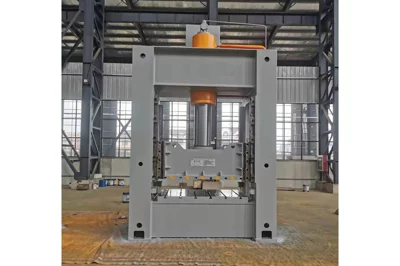

The machine consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system, and electrical system components. The column uses high-quality 45# forging steel, with surface hardness reaching HRC38-42. The main oil cylinder seals use imported materials to ensure reliable sealing.
Hydraulic System:

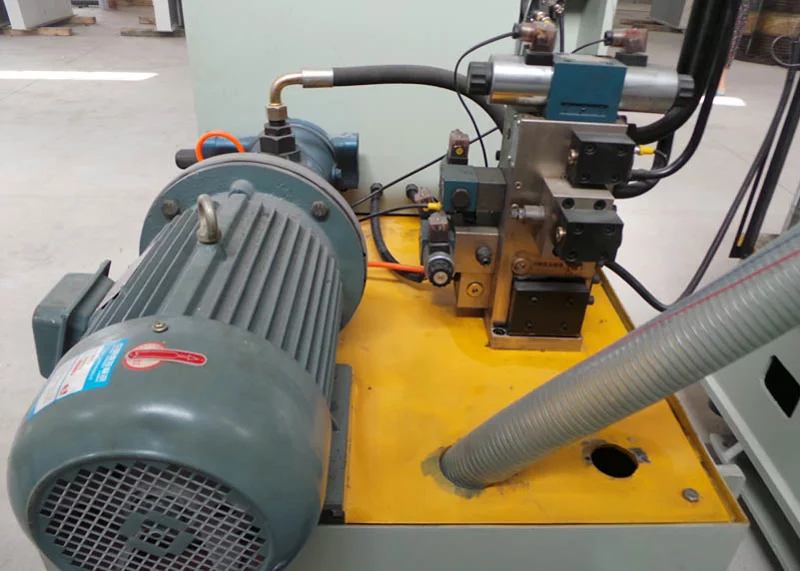

The hydraulic system device is arranged on the right side of the press, featuring a cartridge integrated system with flexible action, reliable work, and good sealing performance. The hydraulic pump comprises an oil tank, high-pressure pump, motor, cartridge valves, and other components.
Electrical Control System:

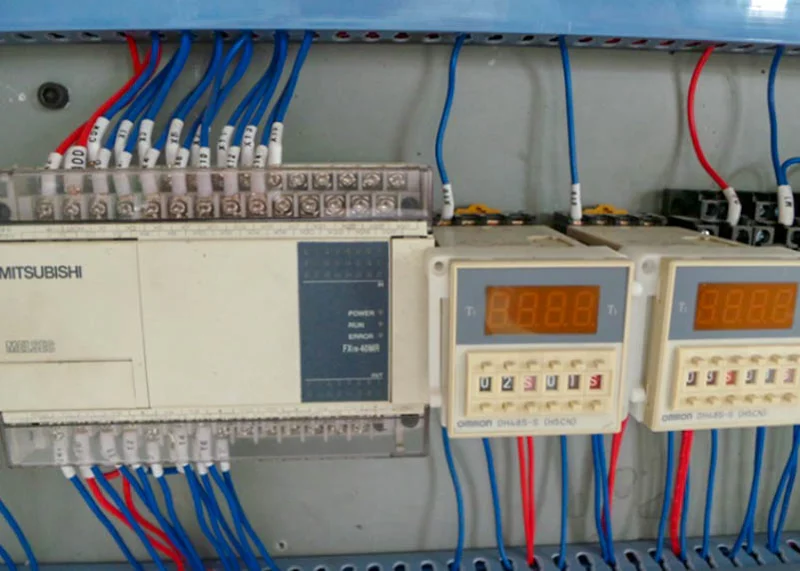

An independent electric cabinet and a centralized control panel.
Optional Features:
- Optoelectronic protective device
- Moving table
- Floating guide-way and rolling bracket for die exchange
- Blanking buffer device
- Quick die clamping mechanism
- Industrial touchscreen monitor
- Stroke, pressure, and speed digital control device
- Water cooler device
- Displacement sensor
- Blank holder slide, hydraulic cushion corners, and respective regulating device for stretching asymmetric parts
Applications:
- Drawing, bending, flanging, cold extruding, and blanking processes for metal materials
- Straightening, press-in, and forming processes for powder and abrasive products, plastic, and insulation materials
Product Specification
| Item | Y32-40 | Y32-63 | Y32-100 | Y32-100A |
|---|---|---|---|---|
| Nominal Force kN | 400 | 630 | 1000 | 1000 |
| Knock-Out Force kN | 120 | 190 | 190 | 190 |
| Max Working Hydraulic Pressure MPa | 25 | 25 | 25 | 25 |
| Slide-Stroke mm | 450 | 500 | 600 | 600 |
| Knock-Out Stroke mm | 150 | 200 | 200 | 200 |
| Max Daylight mm | 700 | 800 | 900 | 900 |
| Slide Speed (Descent) mm/s | 40 | 100 | 120 | 180 |
| Slide Speed (Working) mm/s | 15 | 20 | 14 | 14 |
| Slide Speed (Return) mm/s | 50 | 60 | 47 | 60 |
| Effective Area of Table (L-R) mm | 500 | 560 | 680 | 500 |
| Effective Area of Table (F-B) mm | 460 | 500 | 580 | 460 |
| Overall Size (L-R) mm | 2000 | 2400 | 2500 | 2000 |
| Overall Size (F-B) mm | 1300 | 1400 | 1500 | 1300 |
| Height Above Ground mm | 2600 | 3100 | 2950 | 2600 |
| Total Motor Power kW | 4 | 7.5 | 7.5 | 4 |
| Weight kg | 2000 | 3000 | 4000 | 2000 |
| Item | Y32-160 | Y32-200 | Y32-315 | Y32-400 |
|---|---|---|---|---|
| Nominal Force kN | 1600 | 2000 | 3150 | 4000 |
| Knock-Out Force kN | 240 | 400 | 630 | 630 |
| Max Working Hydraulic Pressure MPa | 25 | 25 | 25 | 25 |
| Slide-Stroke mm | 700 | 700 | 800 | 800 |
| Knock-Out Stroke mm | 200 | 250 | 300 | 300 |
| Max Daylight mm | 1050 | 1100 | 1250 | 1300 |
| Slide Speed (Descent) mm/s | 120 | 100 | 100 | 100 |
| Slide Speed (Working) mm/s | 10 | 12 | 5 | 4 |
| Slide Speed (Return) mm/s | 60 | 52 | 60 | 60 |
| Effective Area of Table (L-R) mm | 1000 | 1000 | 1200 | 1200 |
| Effective Area of Table (F-B) mm | 800 | 900 | 1200 | 1200 |
| Overall Size (L-R) mm | 2700 | 2825 | 3235 | 3235 |
| Overall Size (F-B) mm | 1700 | 2060 | 2200 | 2200 |
| Height Above Ground mm | 3400 | 3725 | 4295 | 4500 |
| Total Motor Power kW | 7.5 | 15 | 22 | 22 |
| Weight kg | 6000 | 11000 | 14000 | 22000 |
| Item | Y32-500 | Y32-500C | Y32-630 | Y32-800 |
|---|---|---|---|---|
| Nominal Force kN | 5000 | 5000 | 6300 | 8000 |
| Knock-Out Force kN | 1000 | 1000 | 1000 | 1600 |
| Max Working Hydraulic Pressure MPa | 25 | 25 | 25 | 25 |
| Slide-Stroke mm | 900 | 900 | 900 | 800 |
| Knock-Out Stroke mm | 350 | 350 | 350 | 450 |
| Max Daylight mm | 1500 | 1500 | 1600 | 1600 |
| Slide Speed (Descent) mm/s | 100 | 100 | 100 | 80 |
| Slide Speed (Working) mm/s | 10 | 10 | 6 | 8 |
| Slide Speed (Return) mm/s | 60 | 60 | 50 | 50 |
| Effective Area of Table (L-R) mm | 1400 | 2370 | 1500 | 1500 |
| Effective Area of Table (F-B) mm | 1400 | 1450 | 1500 | 1400 |
| Overall Size (L-R) mm | 4060 | 6500 | 4200 | 4800 |
| Overall Size (F-B) mm | 3525 | 3800 | 4200 | 4000 |
| Height Above Ground mm | 4995 | 4740 | 5600 | 6000 |
| Total Motor Power kW | 45 | 45 | 45 | 60 |
| Weight kg | 25000 | 38000 | 34000 | 40000 |
| Item | Y32-1000 | Y32-1250 | Y32-1600 |
|---|---|---|---|
| Nominal Force kN | 10000 | 12500 | 16000 |
| Knock-Out Force kN | 2000 | 2000 | 2000 |
| Max Working Hydraulic Pressure MPa | 25 | 25 | 25 |
| Slide-Stroke mm | 900 | 900 | 900 |
| Knock-Out Stroke mm | 450 | 450 | 450 |
| Max Daylight mm | 1600 | 1600 | 1600 |
| Slide Speed (Descent) mm/s | 80 | 80 | 80 |
| Slide Speed (Working) mm/s | 10 | 10 | 10 |
| Slide Speed (Return) mm/s | 50 | 45 | 50 |
| Effective Area of Table (L-R) mm | 1530 | 1700 | 2000 |
| Effective Area of Table (F-B) mm | 1600 | 1600 | 1600 |
| Overall Size (L-R) mm | 5250 | 5250 | 5800 |
| Overall Size (F-B) mm | 3800 | 3800 | 4000 |
| Height Above Ground mm | 5800 | 6000 | 6200 |
| Total Motor Power kW | 75.5 | 75.5 | 75.5 |
| Weight kg | 48000 | 60000 | 82000 |
Product Advantages

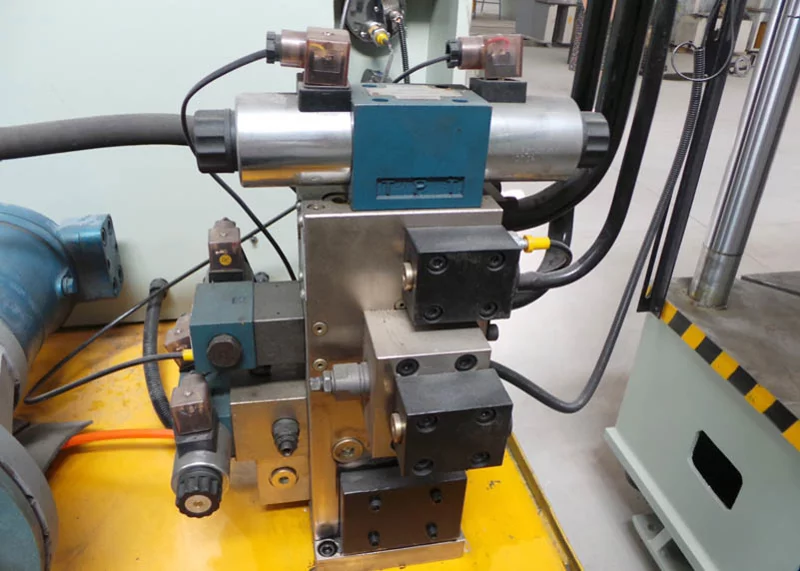

Rexroth Valve of Y32 Hydraulic Press Machine

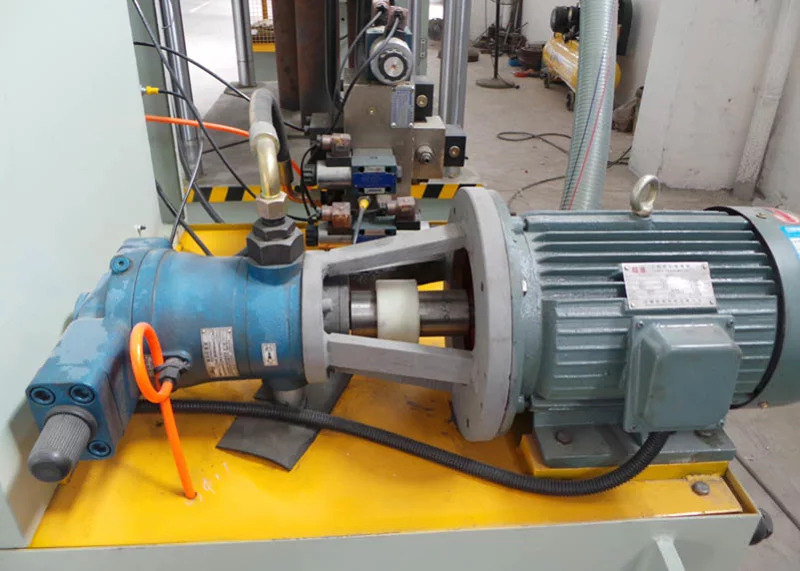

Oil Pump of Y32 Hydraulic Press Machine
Siemens Motor of Y32 Hydraulic Press Machine
