Workshop Hydraulic Press Machine

Models List

  • MDY300
  • MDY500
  • MDY630
  • MDY800
  • MDY1000
  • MDY1500
  • MDY2000
  • MDY3000
  • MDY5000
  • MDY6000
Contact now
Description

workshop press series (MDY model) are used for assembling, dismantling, alignment,calendaring, tension, bending and punching.The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight. The worktable could do up-down movement, so made the machine easy operation.

Machine Detail and Factory Capacity

1/Advanced Equipment's for machine body process.

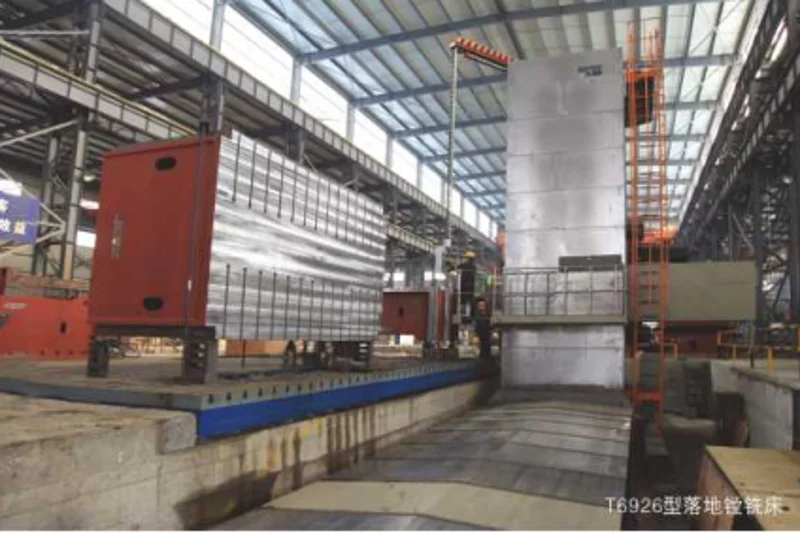

CNC Floor type boring -milling machine to process the table

2/Hydraulic cylinder

Made by forging process, Japan oil seals

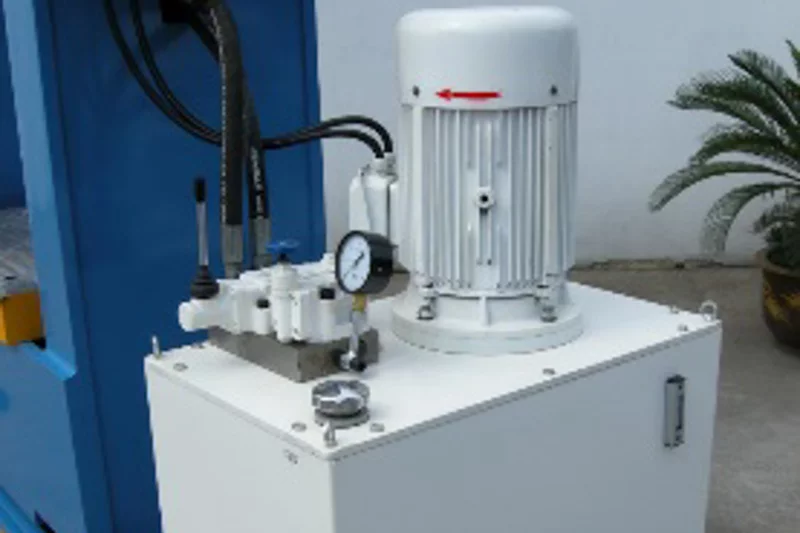

3/High quality brand pump

High pressure pump, long use life

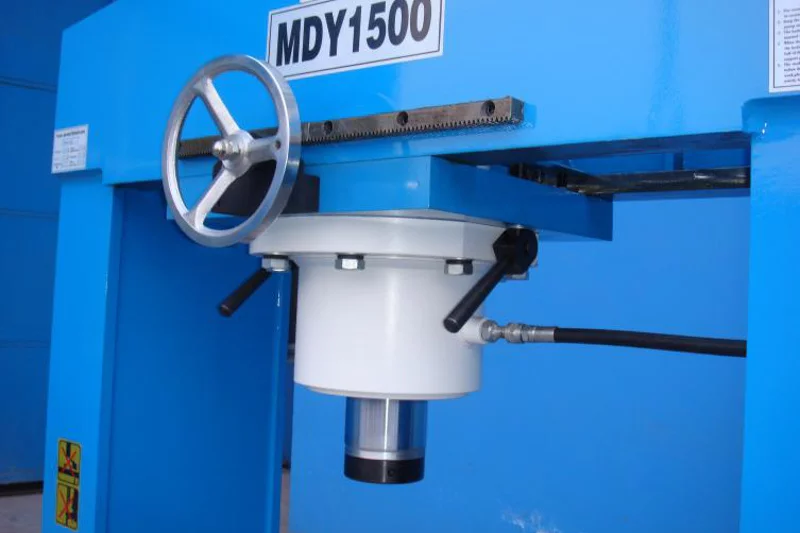

4/Oil cylinder can move type (by manual)

It is optional

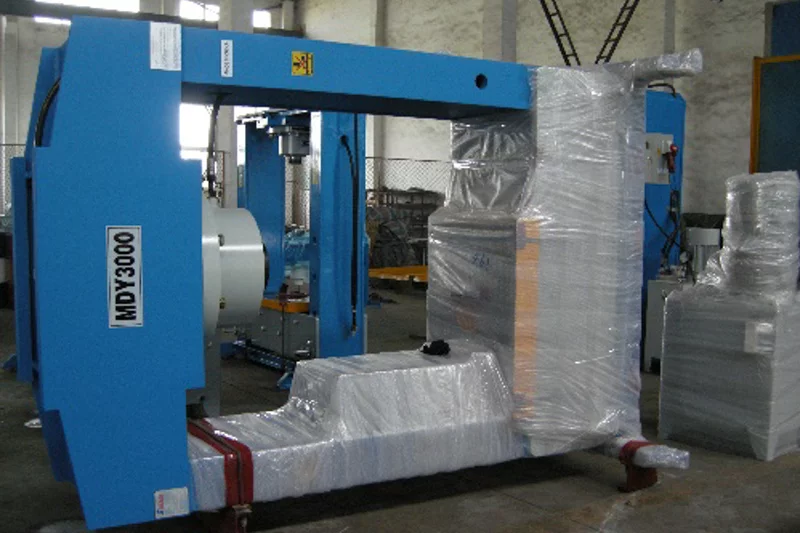

5/Carefully packing

making sure customer received the new and nice machine

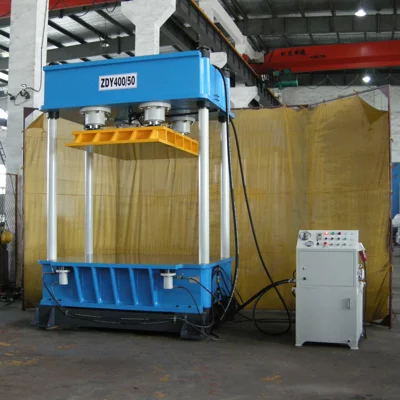

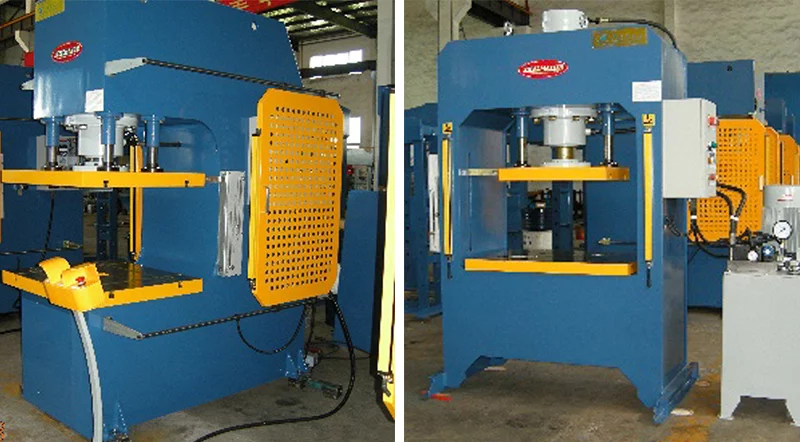

6/Other type press machine

Product Specification
Item MDY300 MDY500 MDY630 MDY800
Nominal pressure KN 1000 1500 2000 3000
Working Pressure Oil System 25 30 30 30 28.5
Motor 7.5 7.5 7.5 7.5
Oil Tank L 135 135 135 170
Eble Adjutmert mm 250x3 300x2 300x2 300x2
Weight Kg 1380 2010 2480 3350
Work Speed mm/s 7.6 4.9 3.9 5.9
Item MDY1000 MDY1500 MDY2000 MDY3000
Nominal pressure KN 5000 6000 300 500
Working Pressure Oil System 25 30 30 30 30
Motor 15 15 1.5 2.2
Oil Tank L 275 275 55 55
Eble Adjutmert mm fixed fixed 200x4 230x3
Weight Kg 6980 7680 405 550
Work Speed mm/s 12.2/2.7 9.9/2.2 5 4
Item MDY5000 MDY6000
Nominal pressure KN 630 800
Working Pressure Oil System 25 30 30
Motor 4 4
Oil Tank L 55 55
Eble Adjutmert mm 250x3 280x3
Weight Kg 850 1020
Work Speed mm/s 6.2 4.9
