Y27 Hydraulic press Machine

Models List

  • Y27-63
  • Y27-100
  • Y27-200
  • Y27-315
  • Y27-500
  • Y27-630
  • Y27-1000
Contact now
Description

Feature

  1. Machine Body: All machining is done by VMC machine centers, ensuring high working accuracy.
  2. Four Columns: All columns adopt 45 steel material, forged, quenched, and chromium plated.
  3. Main Cylinder Rod: Forged process with SKF seals, ensuring long use life.
  4. Hydraulic System and Oil Tank: Designed on top of the machine for easy operation.
  5. Working Modes: Jog/semi-auto/automatic modes with PLC control.
  6. Protection Systems: Hydraulic and electrical systems have overloading protection.
  7. Water Cooling System: Standard feature.
  8. Press Composition: Composed of main body and control devices, including frame, main cylinder, knock-out cylinder, hydraulic system, drive mechanism, lower and upper limit switches, pipelines, electrical control cabinet, etc.
  9. Drive Mechanism: Includes oil tank, high-pressure pumps, low-pressure control system, and valves. The electrical control system is designed according to hydraulic principles. Sequential operation is achieved via pumps, cylinders, valves, tank, and pipelines.
  10. Applications: Suitable for compression of plastic materials, powder and plastic product forming, heat/cool metal extrusion, metal sheet drawing, stamping, bending, edge-folding, straightening, and depressed mounting. Independent drive structures and electrical devices ensure reliable operation with centralized control buttons. Modes include adjustment, manual operation, and semi-automatic operation.
  11. Adjustable Parameters: Working pressure, pressing speed, unload-descending speed, and decelerated pressing speed can be adjusted as required.

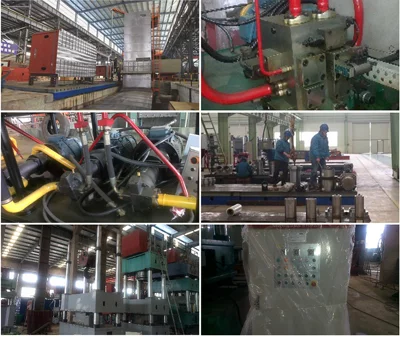

Machine Details

  • Advanced Equipment for Machine Body Process:
  • CNC floor-type boring-milling machine for table processing.
  • Hydraulic Valve System:
  • Uses top-quality brand (Taifeng), ensuring smooth machine operation.
  • High-Quality Brand Pump:
  • High-pressure pump with a long use life.
  • Oil Cylinder and Four Columns:
  • Oil seals adopt SKF. Cylinder and four columns are made from 45# steel, forged.
  • Electrical Control Cabinet:
  • Features nice powder coating, CE brand electrical parts, PLC control, manual, semi-auto, and fully auto working modes.

Customer Reference

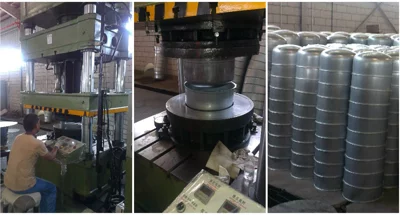

  • Water Heat Tank Project in Saudi Arabia

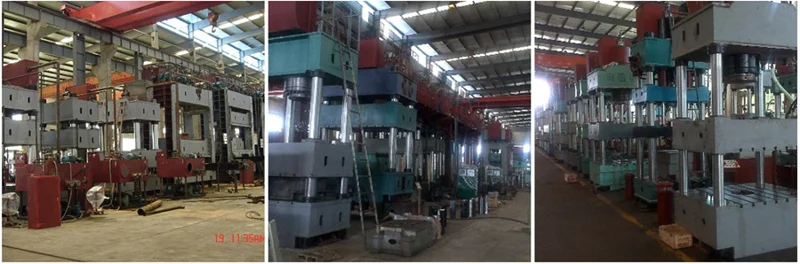

Workshop and Factory

  • Welcome to visit and inspect our machine quality.


Product Specification
Item Y27-63 Y27-100 Y27-200 Y27-315
Nominal Force kN 630 1000 2000 3150
Max Liquid Working Force MPa 25 25 25 25
Hydraulic Cushion Force kN 200 300 600 1250
Max Stroke of Hydraulic Cushion mm 180 300 250 300
Size of the Hydraulic Cushion mm 310x300 470x430 800x630 900x800
Max Opening Height mm 900 1000 1120 1250
Slide Stroke mm 450 700 710 800
Slide Speed (Decent) mm/s 120 150 100 100
Slide Speed (Working) mm/s 11-15 20 6-15 6-12
Slide Speed (Return) mm/s 130 80 80 60
Working Table Size mm 560x500 720x580 1000x900 1250x1120
Motor Power kW 11 11 22 22
Item Y27-500 Y27-630 Y27-1000
Nominal Force kN 5000 6300 10000
Max Liquid Working Force MPa 25 25 25
Hydraulic Cushion Force kN 1600 2500 3000
Max Stroke of Hydraulic Cushion mm 350 400 350
Size of the Hydraulic Cushion mm 1100x1100 1950x1200 2000x1500
Max Opening Height mm 1500 1600 2300
Slide Stroke mm 900 1000 1400
Slide Speed (Decent) mm/s 140 100 100
Slide Speed (Working) mm/s 5-15 6-14 13
Slide Speed (Return) mm/s 70 65 60
Working Table Size mm 1400x1400 2600x1750 2500x2000
Motor Power kW 45 45 90
