Power Press Servo Feeder
Models List
-
NC200C
-
NC300C
-
NC400C
-
NC500C
-
NC600C
-
NC700C
-
NC800C
-
NC1000C
-
NC1300C
Description

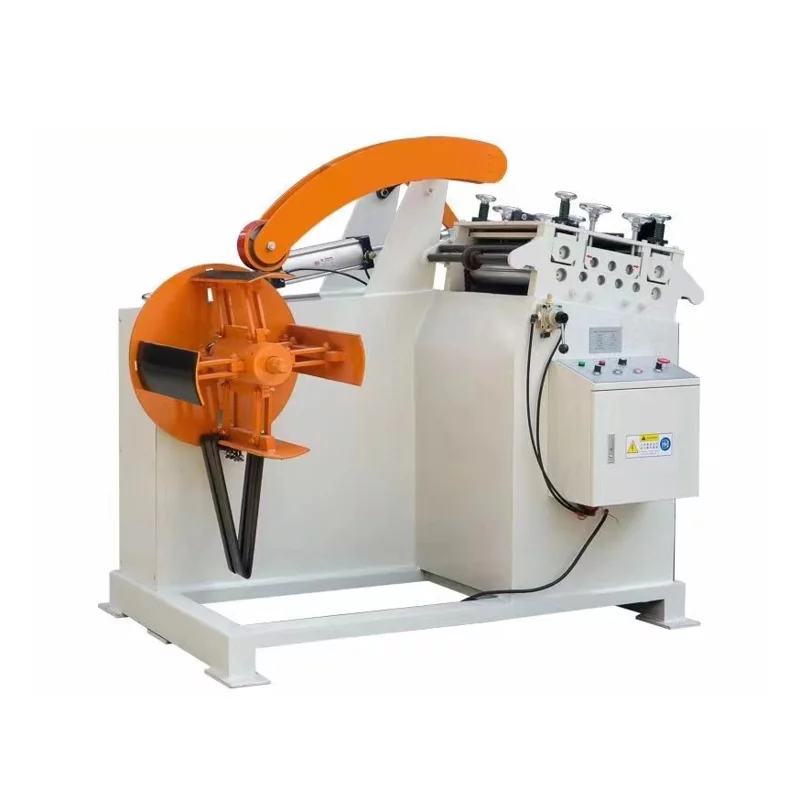

2 In 1 Decolier and Straighter
Introduction
- Suit for most of coiled materials, including HR, CR, aluminum, stainless steel, plastic, etc.
- ULA models achieve the maximum use of precious space by putting decoiler and straightener together.
- Coil is centered by manual or hydraulic expansion of the jaws.
- ULA models that are made up of non-motorized decoiler and motorized straightener are powerful enough to feed the metal strip smoothly.
- Equipped with 11 rolls including 7 straightening rolls and 4 pinch rolls, ULA models are suitable for material thickness from 0.5 to 3.0mm.

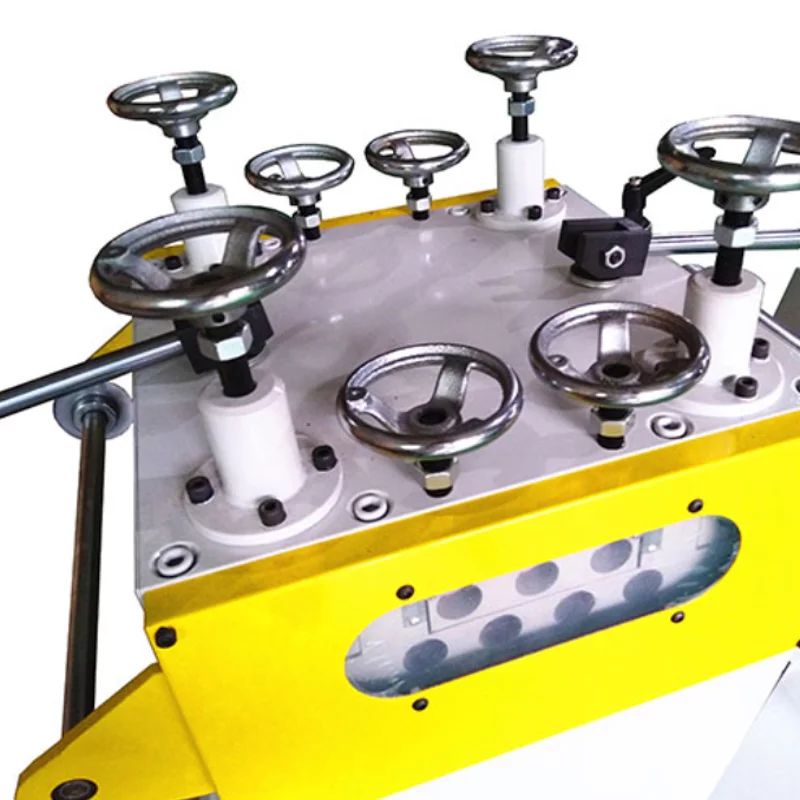

- The gaps between the upper and lower rolls are adjusted individually by hand wheels with reference indicator on the side of the frame.
- High-hardness rolls are heat-treated alloy steel and have been hard-chrome plated and precision ground.
- Equipped with Japanese electromagnetic contactor and electronic components, ULA models have fewer breakdowns and longer lifetime.
- Pneumatic press arm is available. (option)
- Equipped with inverter, ULA models allow an easy adjustment to the payoff speed. (option)
- Custom and application specific solution is available.
Option
- Hydraulic expansion of decoiler mandrel
- Decoiler with AC motor
- Motorized decoiler with Inverter
- Pneumatic press arm
- Motorized straightener with Inverter

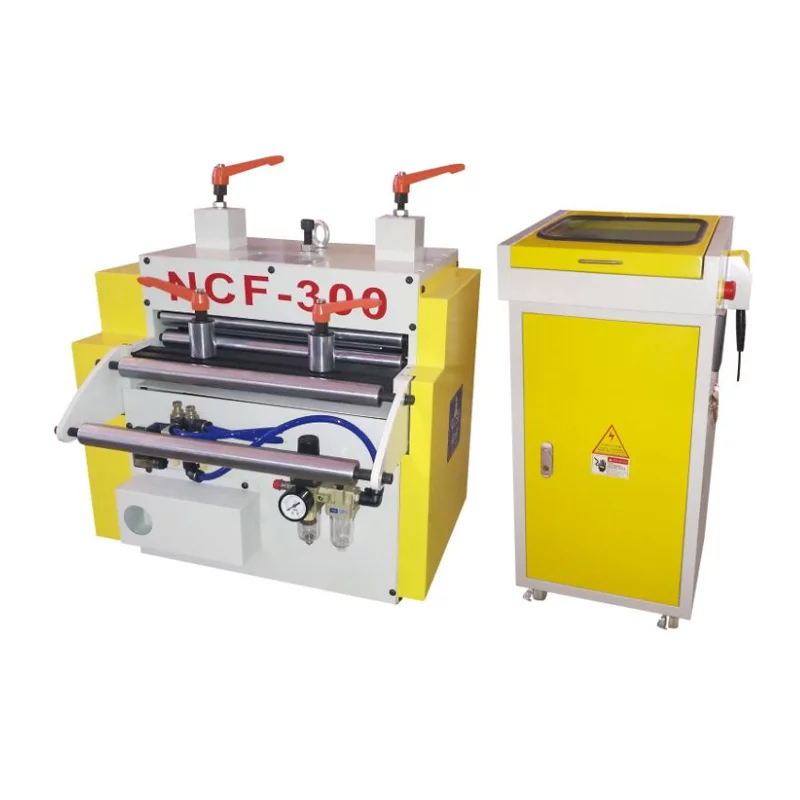

NCF Model Servo Feeder
Introduction
- All feed rolls are made of 40Cr, finished fine machining, heat treated, hard chrome plated and grind. Hardness is up to HRC58°~60°
- Feed rolls are power driven through a precision gear train.
- High-precision feed: NCF models are controlled by computer closed-circuit feedback system, so the feed precision is within +/-0.03mm.
- Phase-style feed function: It is available to input 20 groups of different feed length, each group provides punching for 999 times to satisfy the processing and production of special products (option).
- Manual model: It is available to input 3 phases manual speed so that users operate more easily and feed materials more accurately.
- High-efficiency release device: NCF models can set up release angle quickly, only mact CAM signal of and adjusted feed thickness can do.
- Feed length set up: Input feed length on the control screen directly.

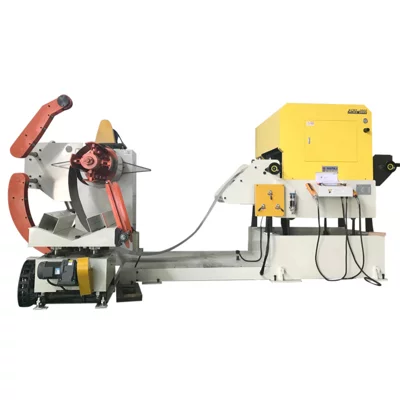

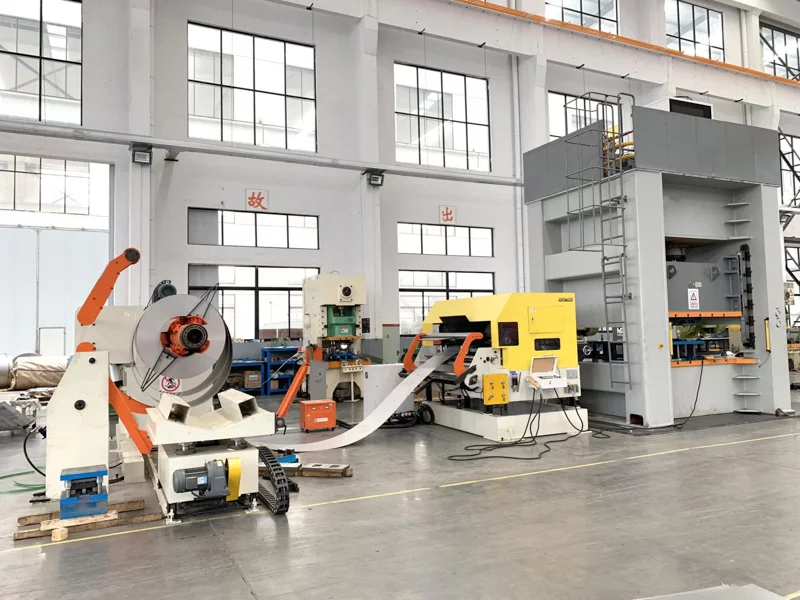

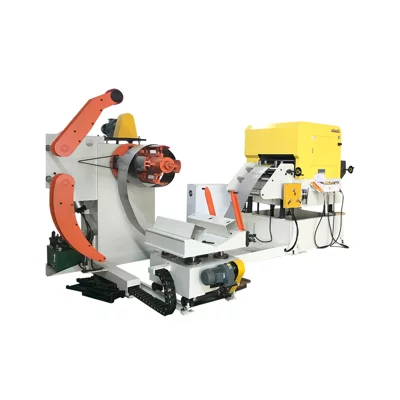

3 IN 1 Servo Feeder
Standard accessory
- Electric eye loop control system
- Outgoing catenary to assist and support the material
- Hold down arms device
- Feeding line easily adjusts by advance worm gear screw device
- Leveling setting wheel with meter panel
- The uncoiler contain the butterfly brakes air compressor
- Uncoiler-inverter device
- Feed and straightener roll with a hard chrome finished
Option accessory
- Hydraulic driven coil cart
- Oil lubricating equipment (manual/ electrical)
- Hydraulic Cutter
Product Specification
Item | NC200C | NC300C | NC400C | NC500C |
---|---|---|---|---|
Coil Width mm | 200 | 300 | 400 | 500 |
Coil Thickness mm | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 |
Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
Feeding Speed m/min | 15 | 15 | 15 | 15 |
Motor Power kW | 1.5 | 2 | 2 | 3 |
Power Supply V | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 |
Feed Line Height mm | 70-250 | 70-250` | 70-250 | 70-250 |
Realse Type | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Item | NC600C | NC700C | NC800C | NC1000C |
---|---|---|---|---|
Coil Width mm | 600 | 700 | 800 | 1000 |
Coil Thickness mm | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 |
Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
Feeding Speed m/min | 15 | 15 | 15 | 15 |
Motor Power kW | 3 | 3 | 3 | 4.5 |
Power Supply V | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 |
Feed Line Height mm | 70-250 | 70-250 | 70-250 | 70-250 |
Realse Type | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Item | NC1300C |
---|---|
Coil Width mm | 1300 |
Coil Thickness mm | 0.5-6.0 |
Feeding Length mm | 9999.99 |
Feeding Speed m/min | 15 |
Motor Power kW | 5 |
Power Supply V | 220/380/415 |
Feed Line Height mm | 70-250 |
Realse Type | Pneumatic |
