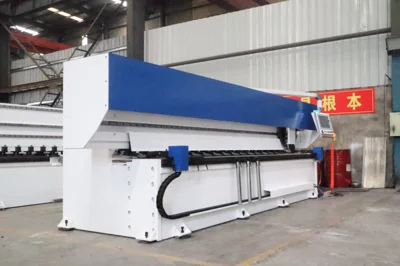

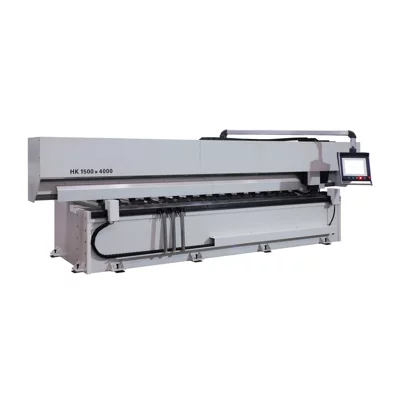

Vertical CNC V Grooving Machine
Models List
-
HK-1250X4000
-
HK-1250X5000
-
HK-1250X6000
Description

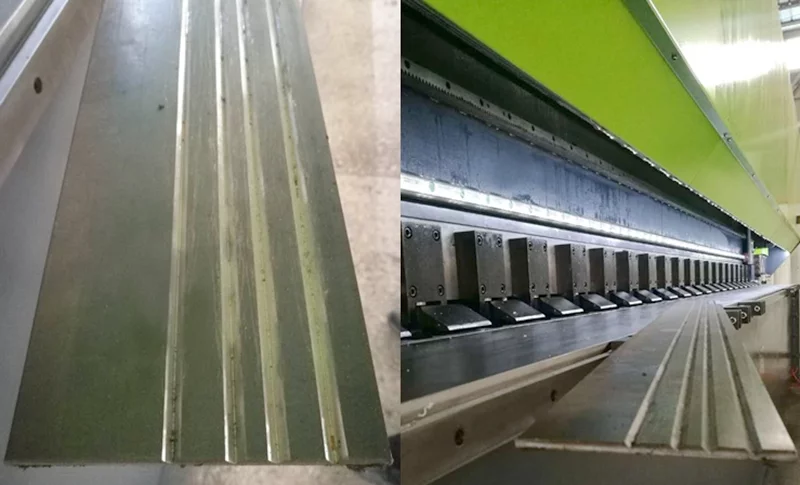

This equipment is fully CNC V Groover Machine for metal sheet. It adopts advanced CNC system and innovative design with the advantages of high processing precision, simple operation, no noise, no vibration and so on. It is widely used in the sheet metal V-groove, U-groove and other irregular groove processing (including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates).Particularly.It is applicable to the V-groove processing of sheet metal before bending.
Structural Features

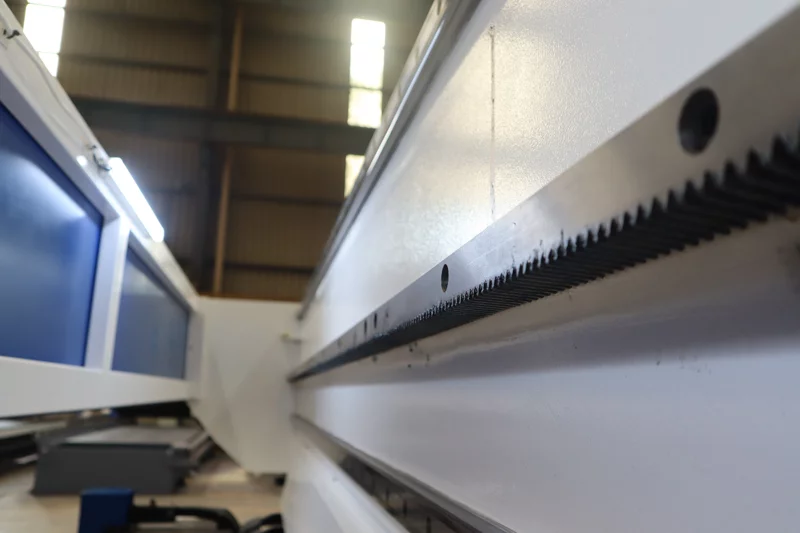

- Whole machine body welded by steel plates with high strength and small deformation.
- Full CNC automatic working.

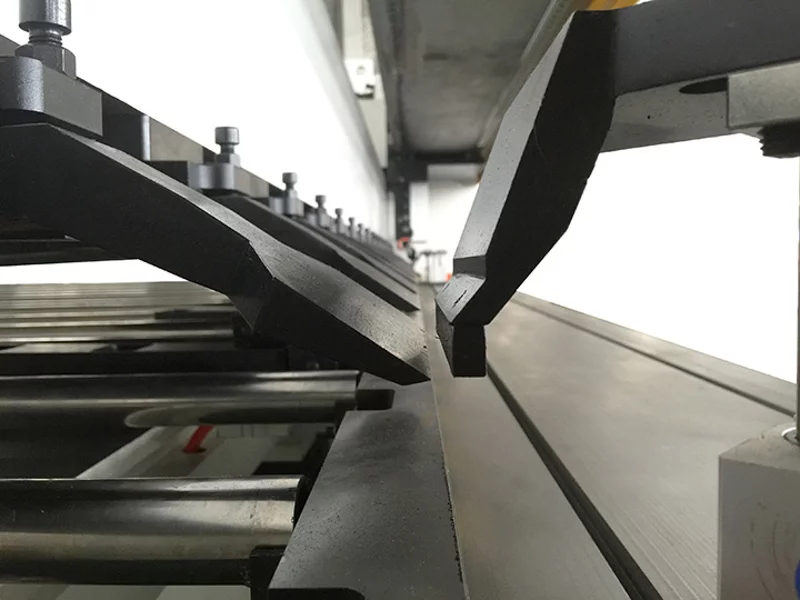

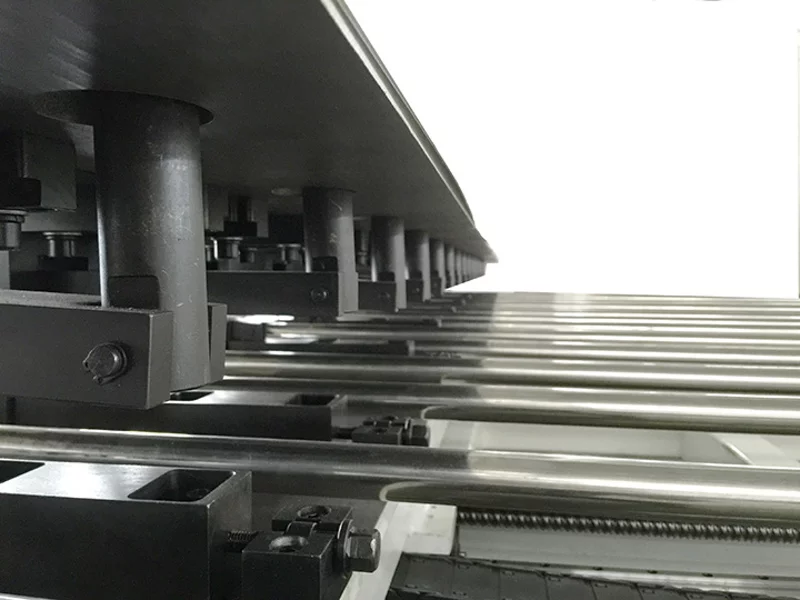

- Automatic clamping and loosening.
- Blade moving meanwhile sheet works stay in its place,so save space.
- Quick changing of blades.
- Three sets blades working together to save time.
- Knock-down front support arms for long work pieces.

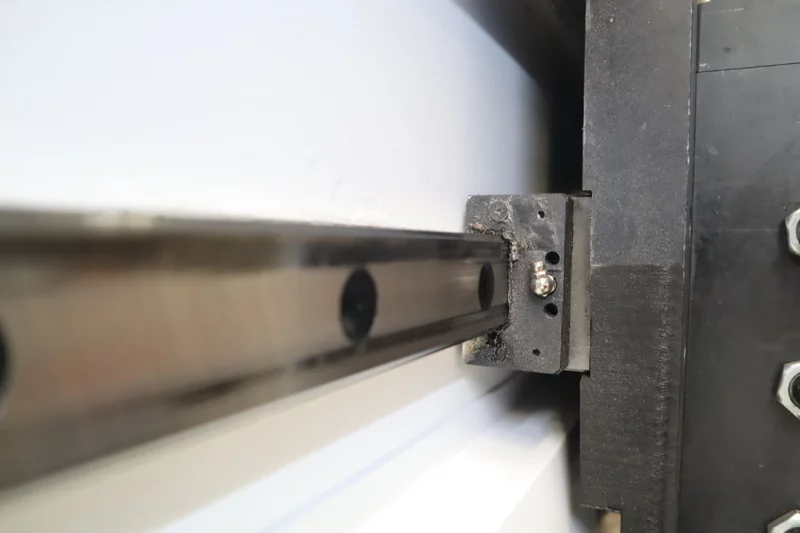

- Servo motor to ensure high precision.
- Less noise and high performance.
Product Specification
| Item | HK-1250X4000 | HK-1250X5000 | HK-1250X6000 |
|---|---|---|---|
| Grooving Material Width mm | 1250 | 1250 | 1250 |
| Grooving Material Length mm | 4000 | 5000 | 6000 |
| Grooving Material Thickness mm | 0.40-4.00 | 0.40-4.00 | 0.40-4.00 |
| Distance Between Sheet Edge To V Edge mm | 8 | 8 | 8 |
| X Axis Moving Speed m/min | 70 | 70 | 70 |
| X Axis Return Speed m/min | 85 | 85 | 85 |
| Y Axis Moving Speed m/min | 20 | 20 | 20 |
| Y/Z Axis Position Accuracy mm | ±0.01 | ±0.01 | ±0.01 |
| X Axis Motor Power kW | 4.5 | 4.5 | 4.5 |
| Y/Z Axis Motor Power kW | 1 | 1 | 1 |
| Machine Size mm | 5740x2350x2110 | 6740x2350x2110 | 7740x2350x2110 |
| Weight Ton | 13 | 15 | 20 |
