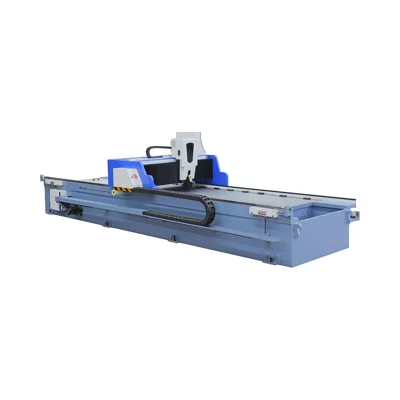

Horizontal CNC V Grooving Machine
Models List
-
RGEK-1250X3200
-
RGEK-1250X4000
-
RGEK-1250X5000
-
RGEK-1250X6000

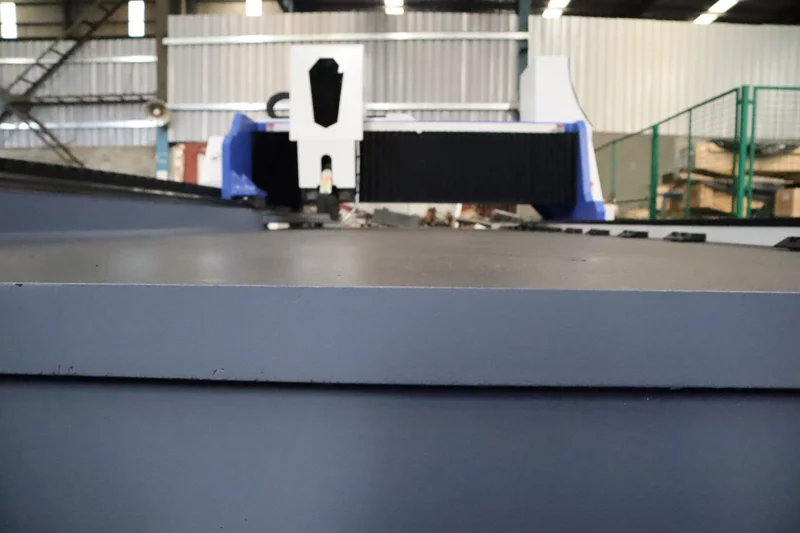

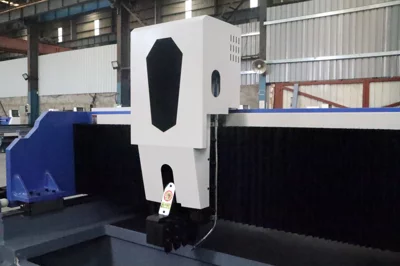

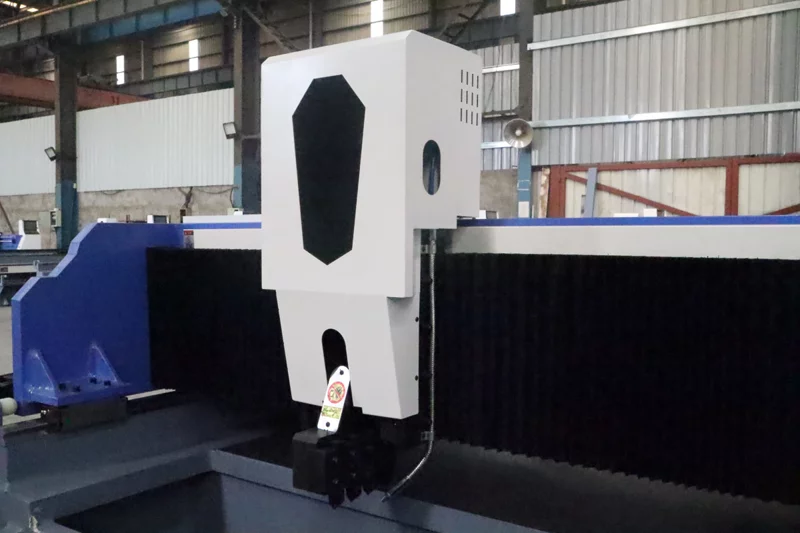

Our Gantry style CNC hydraulic V grooving machine is widely used in the sheet metal V-groove-groove and other irregular groove processing, which is including stainless processing, which processing, which panels and other special processing, which is can applicable to the V-groove processing of sheet metal before bending.
- High efficiency, energy saving, environmental protection.
- Fast and grooving precise positioning.
- Adaptive forward, can adapt to different status of sheet metal.
- High precision workable.
- Easy operation, stable performance and reliable.

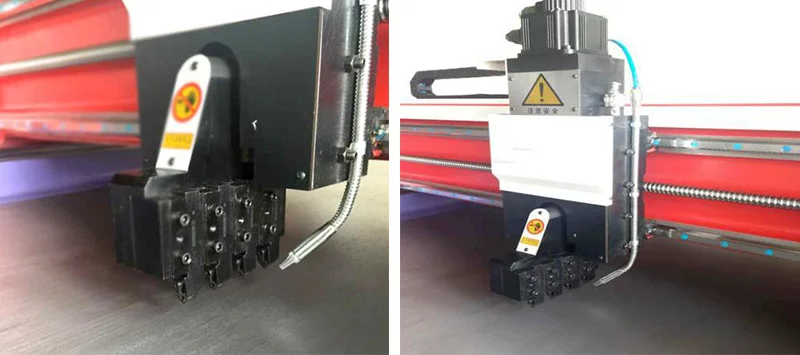

- After use fixture of knife, knife change need not reset to zero.

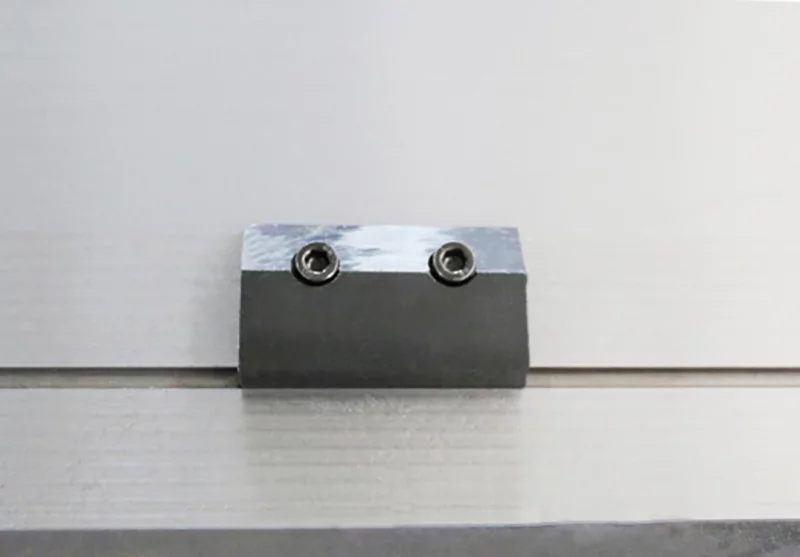

Hydraulic side plate: the use of flexible clamping and unloading equipment, processing board from trauma, hydraulic compression, binder force adjustable

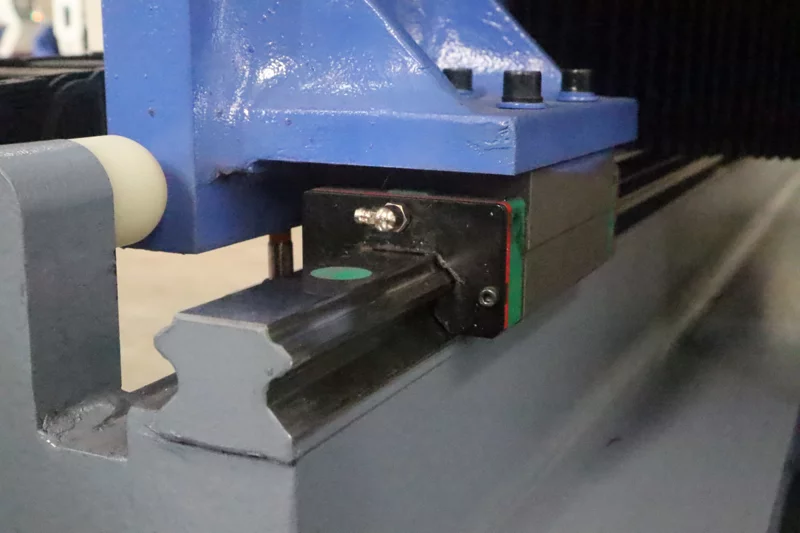

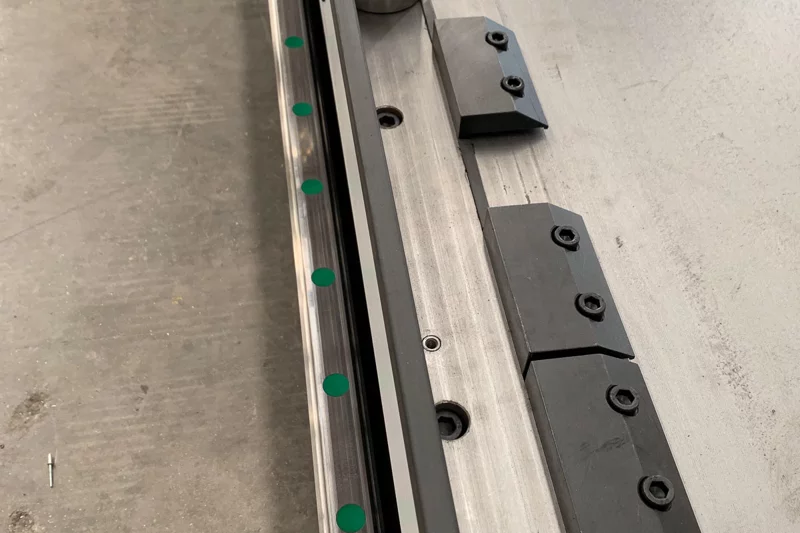

Toolholder transfer device used SFSR mute ball screws and heavy-duty roller linear guide QR, therefore high accuracy

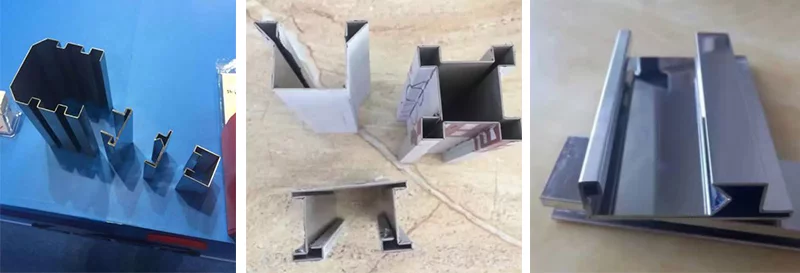

Finished Product Example:
Item | RGEK-1250X3200 | RGEK-1250X4000 | RGEK-1250X5000 | RGEK-1250X6000 |
---|---|---|---|---|
Cutting Length mm | 3200 | 4000 | 5000 | 6000 |
Cutting Width mm | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 |
Sheet Thickness mm | 0.6-4 | 0.6-4 | 0.6-4 | 0.6-4 |
X Axis Forward-Cutting Speed m/min | 70 | 70 | 70 | 70 |
X Axis Backward Speed m/min` | 80 | 80 | 80 | 80 |
Y Axis Max Distance mm | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 |
Y1 Axis Moving Speed m/min | 20 | 20 | 20 | 20 |
Y1 Axis Resolution mm | 0.001 | 0.001 | 0.001 | 0.001 |
Repeat Position Accuracy mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
Z Axis Resolution mm | 0.001 | 0.001 | 0.001 | 0.001 |
Z Axis Accuracy mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
X Axis Motor Power kW | 5.5 | 5.5 | 5.5 | 5.5 |
Y/Y1/Z Axis Motor Power kW | 1.0/1.0/1.0 | 1.0/1.0/1.0 | 1.0/1.0/1.0 | 1.0/1.0/1.0 |
Clamping Device | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Machine Weight Ton | 8 | 8.6 | 9.8 | 11 |
