Profile Rolling Machine

CNC Profile Rolling Machine Brief Introduction

CNC Profile Rolling Machine is at least 1 axis controlled by servo motor. It can achieve high precision bending and gradual change arc bending. It adopts SIEMENS CNC control system to control machine's action. It's very suitable for high precision bending requirement industry such as aircraft, rockets, bending.

CNC Profile Rolling Machine's Feature Highlights

1. 3 rolls driven by hydraulic system.
2. Curvature adjusting roller's moving adopts servo motor
3. Adjusting single roller to achieve curvature adjusting.
4. curvature adjusting by input needed detain CNC control for auto calculate and control.
5. Use touch screen, PLC and electrical control system.
6. Multi language of control system.
7. Fault automatic check function
8. Error and solution method on the screen.
9. Counting function.
10. Save bending programmed in PLC for next time use.
11. Manual, Semi-auto and Auto mode.
12. Hydraulic oil cooling system

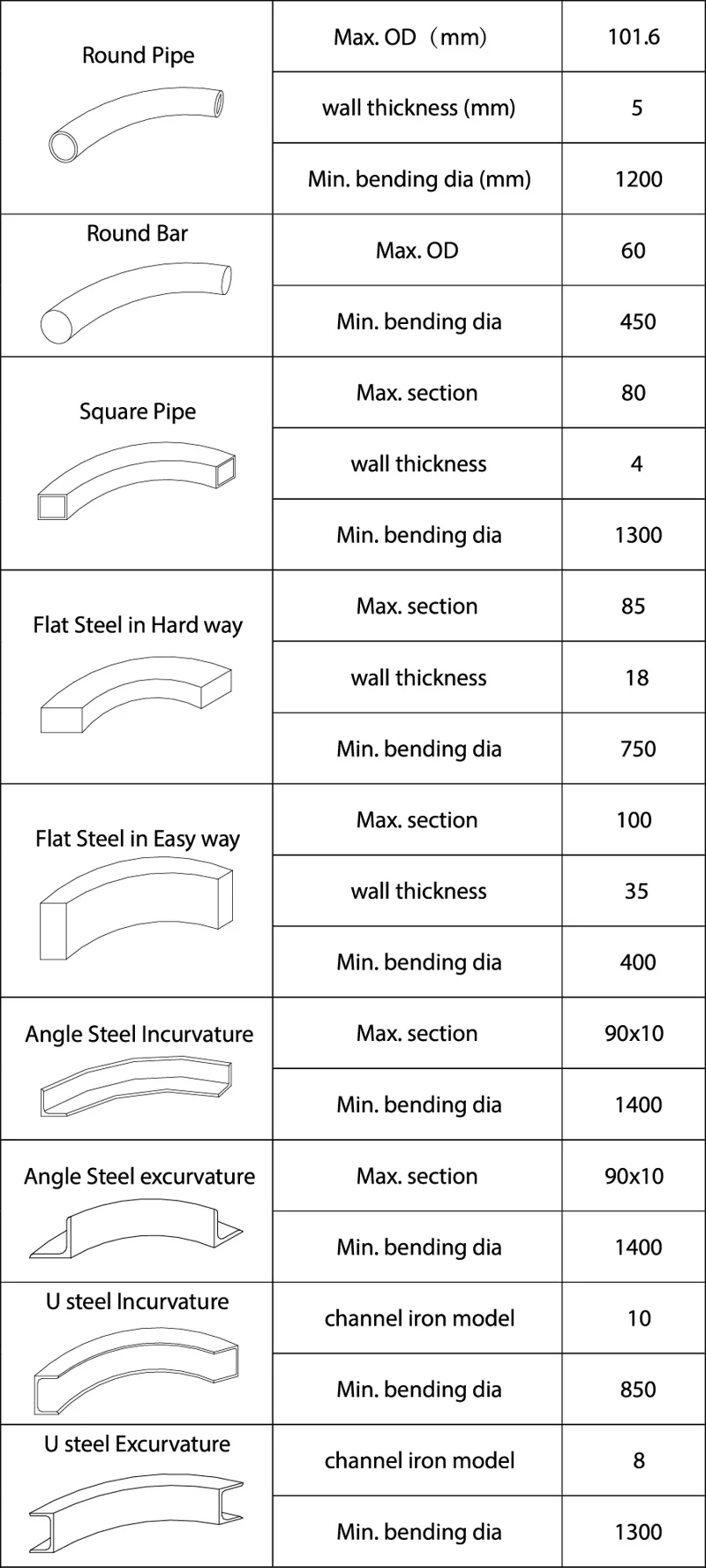

13. It can process different profile like angle iron, flat iron, round pipe, and other different sections.
14. Design rolling machine according to industry’s characteristics.
