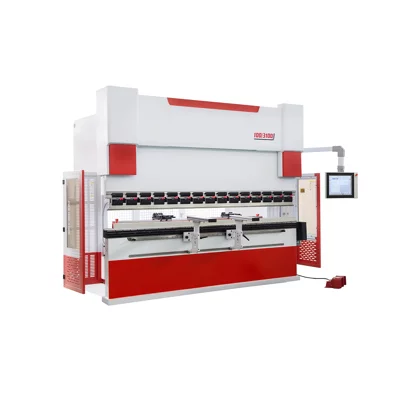

CNC Press Brake Machine

Models List

  • 30/1050
  • 50/1300
  • 60/1500
  • 60/2050
  • 60/2550
  • 100/3100
  • 100/4100
  • 150/3100
  • 150/4100
  • 225/3100
  • 225/4100
  • 320/3100
  • 320/4100
  • 400/3100
  • 400/4100
Contact now
Description

Features:

Electro-Hydraulic System:

  • Controls dual cylinders to achieve high synchronized controlling accuracy, high bending accuracy, and re-positioning accuracy.

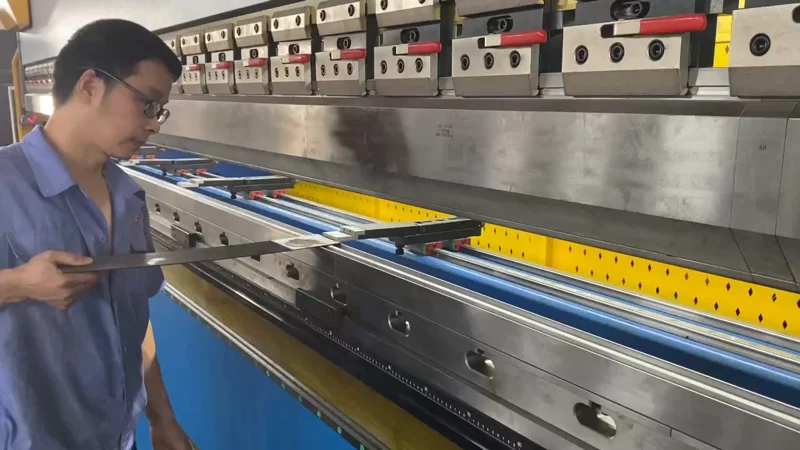

Mechanical Deflection Automatic Compensation System:

  • Solves the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system to facilitate accuracy.
  1. Two-Way Adjusting Structure:
  • Satisfies compensation in both transverse and longitudinal directions of the machine.
  1. Dense Point Compensation Method:
  • Ensures more accurate bending.
  1. Single Plate Thickness Material Compensation:
  • Compensation is done in one step, different from the hydraulic compensation and back-and-forth movement structure. Mechanical compensation greatly reduces the fatigue deformation of the machine tool workbench, improving its service life.
  1. Accurate Control:
  • Uses a special reducer and high precision potentiometer to control compensation accuracy.
  1. Single-Plate Worktable Design:
  • Different from the three-plate structure of hydraulic compensating worktables, this device prevents interference during the bending of the workpiece.

Frame:

  • Assembled in one step after welding and processed by a CNC pentahedron processing center, ensuring the rigidity and processing accuracy of the frame.

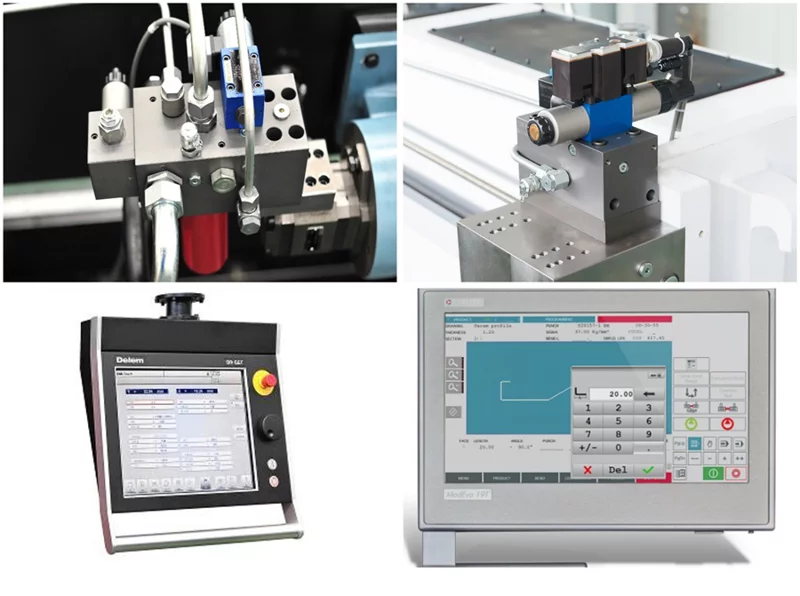

Integrated Hydraulic Controlling System:

  • Decreases pipeline, avoids oil leakage, improves stability of performance, and enhances the appearance of the machine.

Main Technical Features:

  • The frame is assembled in one step after welding and processed by a CNC pentahedron processing center, ensuring the rigidity and processing accuracy of the frame.
  • Integrated hydraulic controlling system decreases pipeline, avoiding oil leakage and improving performance stability, also beautifying the machine's appearance.

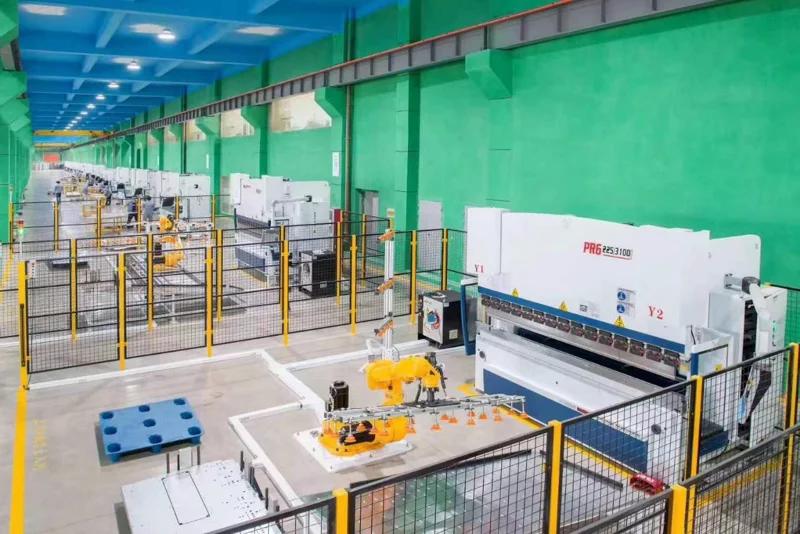

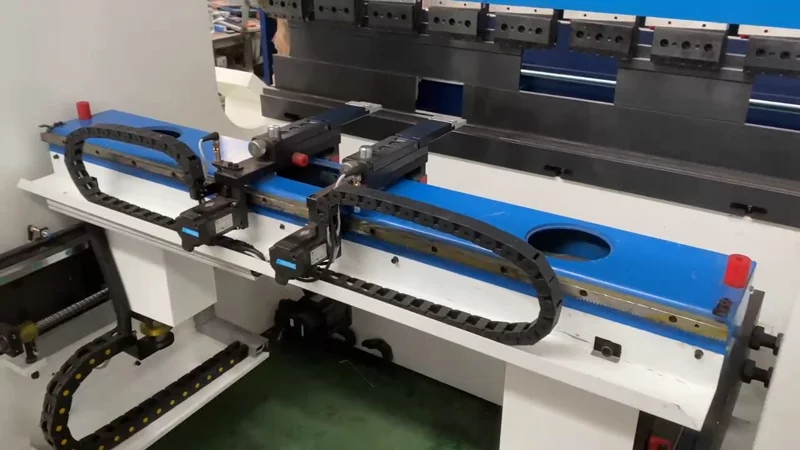

Press Brake with Auto Loading/Unloading Project:

Product Specification
Item 30/1050 50/1300 60/1500 60/2050
Max. Bending Force kN 2250 1500 1500 1000
Max. Bending Length mm 3100 4100 3100 4100
Column Distance mm 2600 3600 2600 3600
Throat Depth mm 400 400 400 400
Ram Stroke mm 215 215 215 215
Closed Height mm 480 420 420 420
Approaching Speed mm/s 110 130 120 160
Working Speed mm/s 8 9 9 10
Return Speed mm/s 90 110 110 120
Main Motor Power kW 15 11 11 7.5
Item 60/2550 100/3100 100/4100 150/3100
Max. Bending Force kN 1000 600 600 600
Max. Bending Length mm 3100 2550 2050 1500
Column Distance mm 2600 2000 1600 1100
Throat Depth mm 400 300 300 300
Ram Stroke mm 215 165 165 165
Closed Height mm 420 420 420 420
Approaching Speed mm/s 160 150 150 150
Working Speed mm/s 10 11 11 11
Return Speed mm/s 130 120 120 120
Main Motor Power kW 7.5 5.5 5.5 5.5
Item 150/4100 225/3100 225/4100 320/3100
Max. Bending Force kN 500 300 2250 3200
Max. Bending Length mm 1300 1050 4100 3100
Column Distance mm 900 700 3600 2600
Throat Depth mm 300 300 400 400
Ram Stroke mm 165 165 215 265
Closed Height mm 420 420 480 530
Approaching Speed mm/s 160 160 120 80
Working Speed mm/s 10 10 8 8
Return Speed mm/s 120 120 90 85
Main Motor Power kW 5.5 4 15 22
Item 320/4100 400/3100 400/4100
Max. Bending Force kN 3200 4000 4000
Max. Bending Length mm 4100 3100 4100
Column Distance mm 3600 2600 3600
Throat Depth mm 400 400 400
Ram Stroke mm 265 265 265
Closed Height mm 530 530 530
Approaching Speed mm/s 90 100 110
Working Speed mm/s 8 8 8
Return Speed mm/s 85 85 85
Main Motor Power kW 22 30 30
