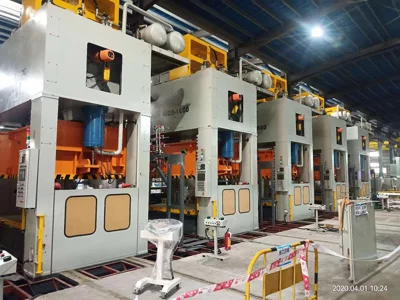

Description

Item	Brief Description
Machine Body	Steel plate welded structure, through vibration aging treatment, the overall heat ageing annealing treatment. (Double aging treatment)
Bolster	Made from Casting HT200,through annealing treatment
Crank	Made from Forging, through flaw detection ,surface quenching, nitriding processing
Fly Wheel	Casting HT200,Through Annealing Treatment
Worm	Zinc-based alloys
Worm Gear	Made from 45# steel
Connecting Rod	Made from Ductile iron, cast iron, and throughnormalizing treatment
Ball Head and Screw	Made From 45# steel, surface by Nitriding treatment
Balance Cylinder	Cylinder Body Inside Through Honing Processing

Machine body	Steel metal machine body, iron cast working table
Gears	Forging die gear grinding with Germany N1LES grinding machine;
Inverter	TECO ( Taiwan )
Motor `	TECO ( Taiwan )
Double-solenoid valve	TACO ( JAPAN )
CLUTCH	OMPI ( Italy )
Over-load protector	KINGAIR ( Taiwan )
Bearing	NSK ( Japan )
Oil seals	NOK ( Japan )
Contactor and other parts	Schneider
Air adapter	3A ( Korea)
Nuts/screw and fastener	MaoYi ( Taiwan)

Detail Parts Production Process:

Forging Crank:

Complete one-piece forging, not welding type.
Crank Grinding:
The crank first goes to the lathe machine, then to the grinding machine. One crank takes 7 hours in the grinding process.

Machine Frame:

First, a plasma cutting machine is used to cut the steel plate. Before welding the frame, we use a beveling machine to bevel the steel. The frame is then fully welded, making the body stronger. This is followed by shot blasting and painting.

Advanced Equipment for Machine Body Process:

CNC Floor-Type Boring Machine:
Ensures high precision.
High Precision Gear:
Keeps the machine running with low noise. Made by Germany NILE Grinder.
Ram Assembly:
Every ram is stamped with a code to ensure assembly quality.
Electrical Parts:
All parts adhere to CE standards. Main parts are from Schneider.

Customer References:

Customer Reference in the UK:

Nico Manufacturing Ltd
109 Oxford Road,
Clacton-On-Sea, Essex. CO15 3TJ

Customer Reference in CA:

Future Steel Buildings Intl. Corp.
220 Chrysler Drive,
Brampton, Ontario,
Canada, L6S 6B6

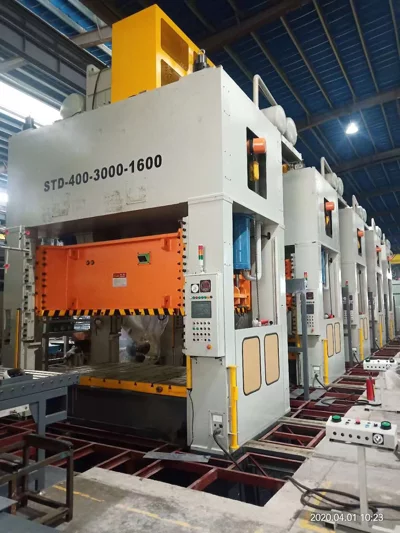

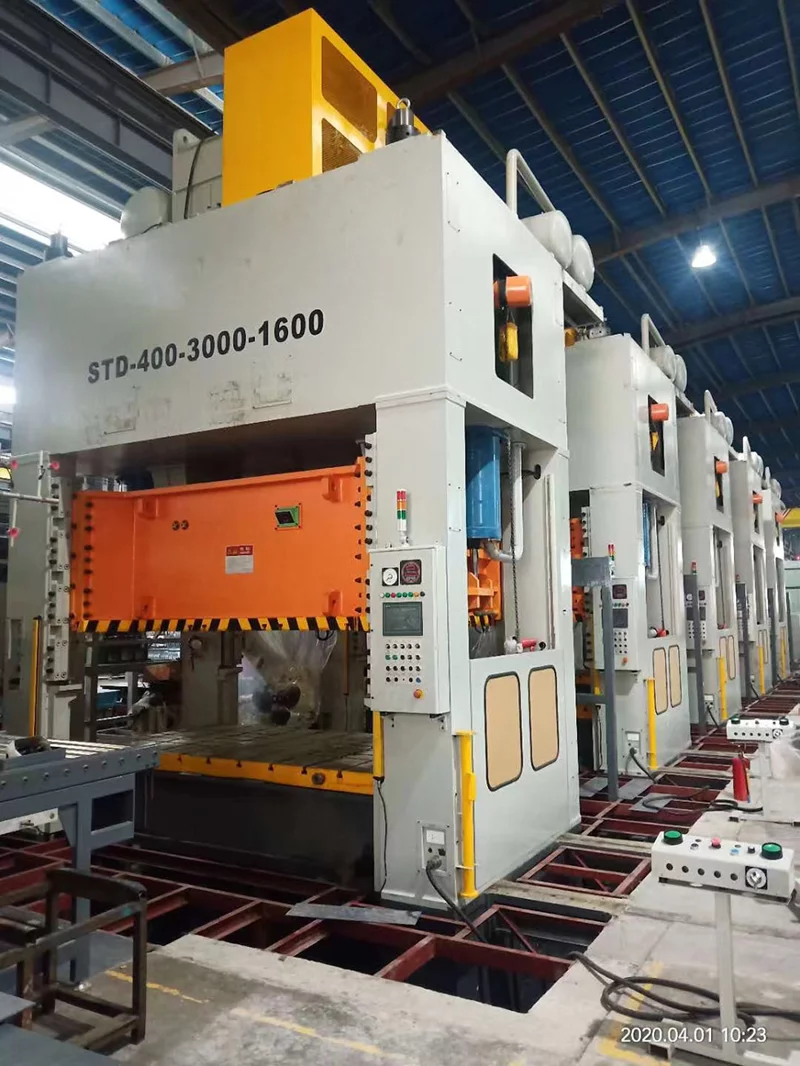

Product Specification

Item	STD-300	STD-300	STD-400	STD-400
Model	H	S	H	5
Capacity ton	1200	1200	1000	1000
Rated Tonnage Point mm	8	13	8	13
Stroke mm	300	400	300	400
Speed Changing spm	15-25	10-20	20-30	10-20
Die Height mm	1000	1000	900	900
Slide Adjustment mm	250	250	250	250
Slide Area mm	4200x1500	4200x1500	4000x1500	4000x1500
Bolster Area mm	4200x1600	4200x1600	4000x1600	4000x1600
Side Opening mm	300x900	300x900	1300x800	1300x800
Die Cushion Capacity ton	120	120	120	120

Item	STD-500	STD-500	STD-600	STD-600
Model	H	5	H	5
Capacity ton	800	800	600	600
Rated Tonnage Point mm	8	13	8	13
Stroke mm	300	400	300	400
Speed Changing spm	20-35	12-22	20-35	15-25
Die Height mm	800	800	700	700
Slide Adjustment mm	200	200	200	200
Slide Area mm	3800x1500	3800x1500	3600x1400	3600x1400
Bolster Area mm	3800x1600	3800x1600	3600x1500	3600x1500
Side Opening mm	1300x700	1300x700	1200x600	1200x600
Die Cushion Capacity ton	100	100	80	80

Item	STD-800	STD-800	STD-1000	STD-1000
Model	H	5	H	5
Capacity ton	500	500	400	400
Rated Tonnage Point mm	7	13	7	13
Stroke mm	300	400	300	400
Speed Changing spm	20-35	15-75	30-50	15-25
Die Height mm	700	700	700	700
Slide Adjustment mm	200	200	150	150
Slide Area mm	3100x1400	3100x1400	2800x1300	2800x1300
Bolster Area mm	3100x1500	3100x1500	2800x1400	2800x1400
Side Opening mm	1200x600	1200x600	1100x600	1100x600
Die Cushion Capacity ton	70	70	60	60

Item	STD-1200	STD-1200
Model	H	5
Capacity ton	300	300
Rated Tonnage Point mm	7	9
Stroke mm	200	350
Speed Changing spm	30-50	15-35
Die Height mm	600	600
Slide Adjustment mm	150	150
Slide Area mm	2500x1200	2500x1200
Bolster Area mm	2500x1300	2500x1300
Side Opening mm	1000x550	1000x550
Die Cushion Capacity ton	50	50

Product Advantages

Inverter

It works mainly for speed regulation, convenient for mold installation and trial by operators as well as machine maintenance.

Hydraulic overload protection pump

When the pressure of slider exceeds its specified pressure, the overload pump will relieve the pressure to protect the stressed part of press machine from damage.

Auto grease lubrication device

It works under PLC control, providing lubrication for guide rails, crankshaft bearing bush, etc. without manual interference, realizing automatic lubrication

Clutch and brake integrated

The function of clutch and brake is to control the movement and stop of slider, its sensitivity directly relates to safety issues, it works on the purpose of protecting the operators and press machine.

Digital die height indicator

Balancer and clutch pressure meter

The pressure of overload protection pump is generally adjusted at 0.4MPa, clutch and brake pressure at 0.6MPa, balancer pressure at 0.4MPa.

Slide adjustment motor

The motor drives the slider, which moves up and down to adjust the distance between slider and working table. When the distance is adjusted well, motor stops working.

Touch screen ( APA 110 electric box with machine body together )

Multi language touch screen control system. It displays a series of press parameter, such as SPM (strokes per minute), electronic cam angle etc. You may set other corresponding data through this touch screen.

Hands operation panel ( Optional ) extra USD 500/set

When operators start the machine, they need to press the left and right buttons at the same time, which is to avoid potential safety risks when operators start the button while operating the machine.
