Description

Item	Brief Description
Machine Body	Steel plate welded structure, through vibration aging treatment, the overall heat ageing annealing treatment. (Double aging treatment)
Bolster	Made from Casting HT200,through annealing treatment
Crank	Made from Forging, through flaw detection ,surface quenching, nitriding processing
Fly Wheel	Casting HT200,Through Annealing Treatment
Worm	Zinc-based alloys
Worm Gear	Made from 45# steel
Connecting Rod	Made from Ductile iron, cast iron, and throughnormalizing treatment
Ball Head and Screw	Made From 45# steel, surface by Nitriding treatment
Balance Cylinder	Cylinder Body Inside Through Honing Processing

Machine body	Steel metal machine body, iron cast working table
Gears	Forging die gear grinding with Germany N1LES grinding machine;
Inverter	TECO ( Taiwan )
Motor `	TECO ( Taiwan )
Double-solenoid valve	TACO ( JAPAN )
CLUTCH	OMPI ( Italy )
Over-load protector	KINGAIR ( Taiwan )
Bearing	NSK ( Japan )
Oil seals	NOK ( Japan )
Contactor and other parts	Schneider
Air adapter	3A ( Korea)
Nuts/screw and fastener	MaoYi ( Taiwan)

Detail Parts Production Process:

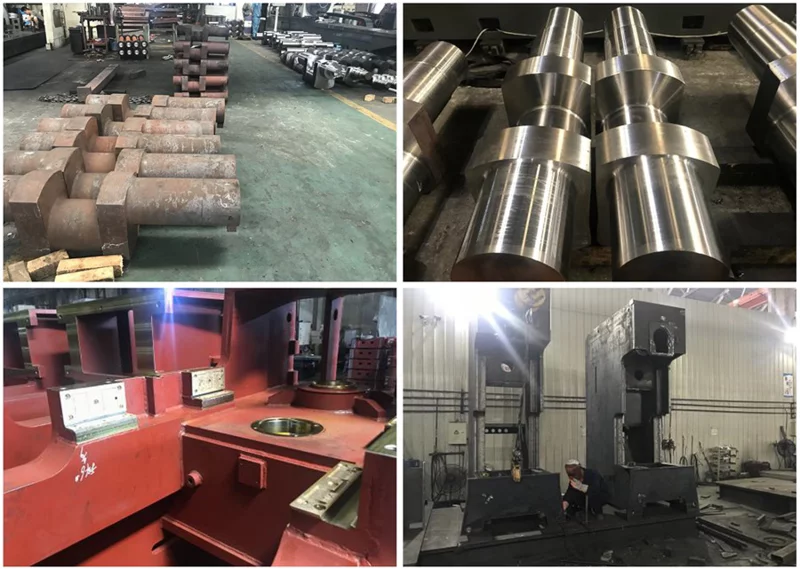

Forging Crank:

Complete one-piece forging, not welding type.
Crank Grinding:
The crank first goes to the lathe machine, then to the grinding machine. One crank takes 7 hours in the grinding process.

Machine Frame:

First, a plasma cutting machine is used to cut the steel plate. Before welding the frame, we use a beveling machine to bevel the steel. The frame is then fully welded, making the body stronger. This is followed by shot blasting and painting.

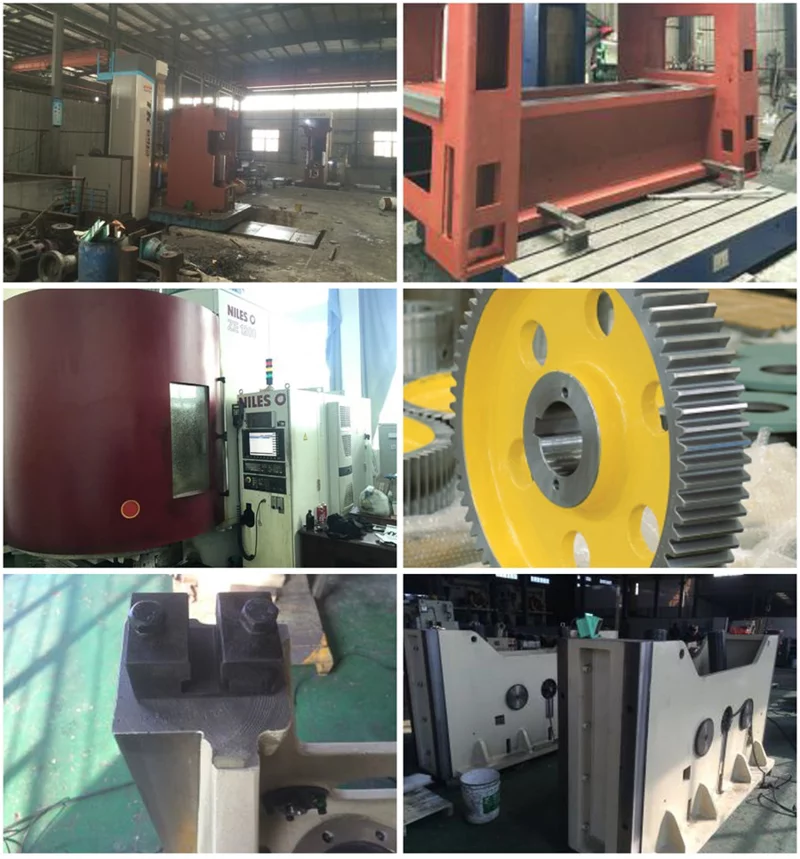

Advanced Equipment for Machine Body Process:

CNC Floor-Type Boring Machine:
Ensures high precision.
High Precision Gear:
Keeps the machine running with low noise. Made by Germany NILE Grinder.
Ram Assembly:
Every ram is stamped with a code to ensure assembly quality.

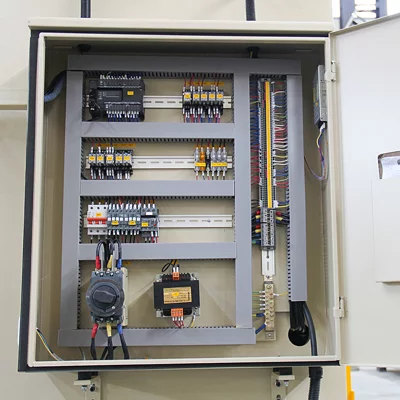

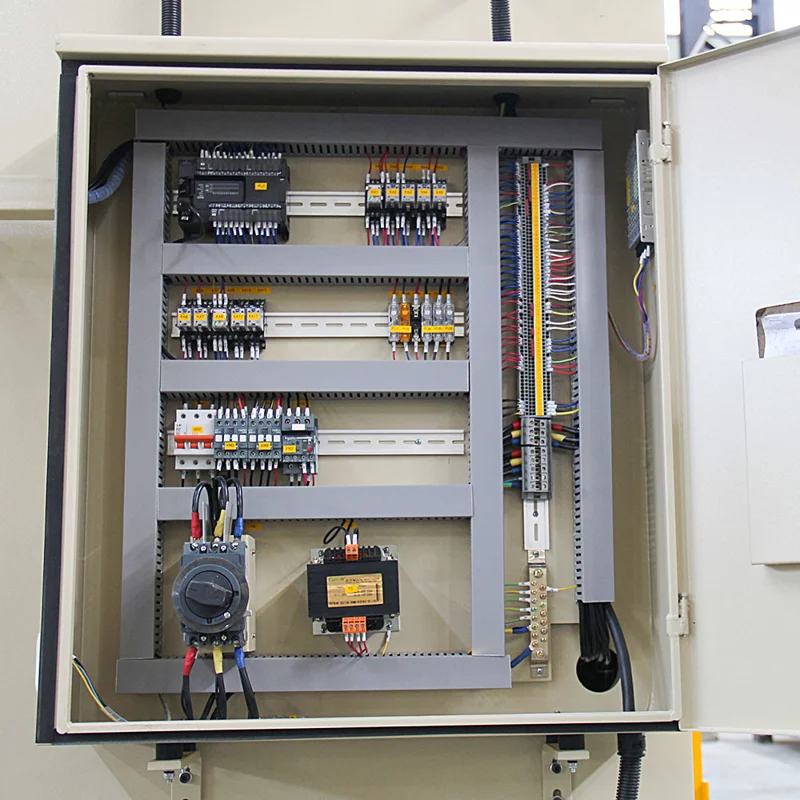

Electrical Parts:
All parts adhere to CE standards. Main parts are from Schneider.

Customer References:

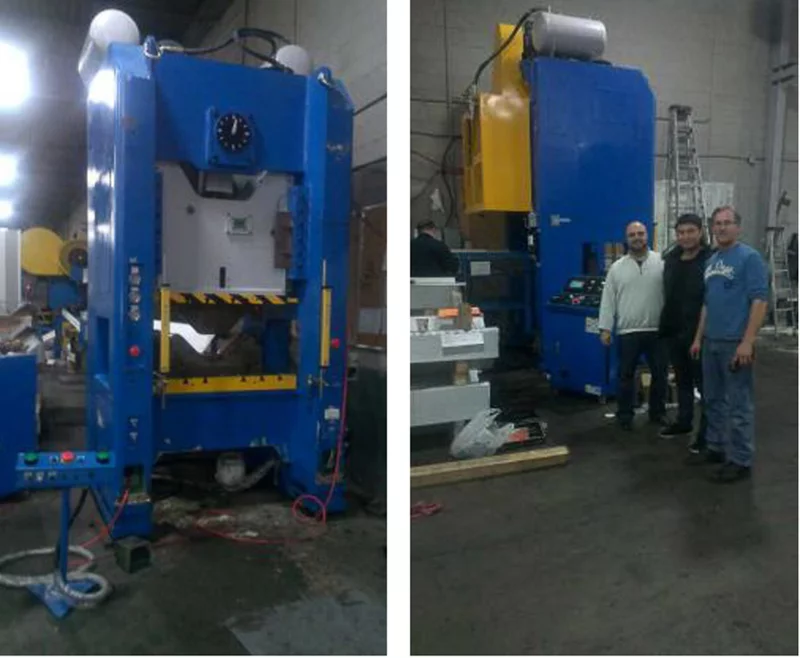

Customer Reference in the UK:

Nico Manufacturing Ltd
109 Oxford Road,
Clacton-On-Sea, Essex. CO15 3TJ

Customer Reference in CA:

Future Steel Buildings Intl. Corp.
220 Chrysler Drive,
Brampton, Ontario,
Canada, L6S 6B6

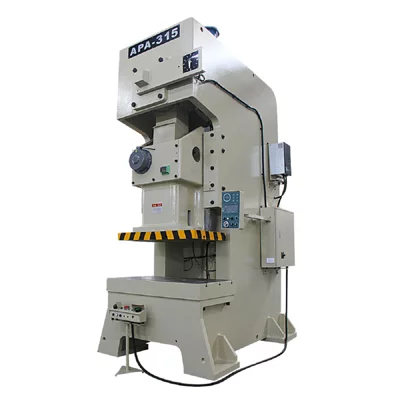

Product Specification

Item	APA-35	APA-45	APA-60	APA-80
Capacity Ton	35	45	60	80
Rated Tonnage Point mm	3.2	3.2	4	4
Speed Changing S.P.M.	40-120	40-100	35-90	35-80
Stable Speed S.P.M.	85	75	65	65
Stroke mm	70	80	120	150
Die Height mm	220	250	310	340
Slide Adjustment mm	55	60	75	80
Slide Area mm	360×250×50	400×300×60	500×360x70	560x420X70
Bolster Area mm	800x400x70	850x440x80	900x500x80	1000x550×90
Shank Hole mm	38	38	50	50
Main Motor kW/P	3.7x4	5.5×4	5.5x4	7.5×4
Air Pressure Kg/cm²	6	6	6	6
Presses Dimension mm	1380x900x2400	1575x950x2500	1595x1000x2800	1800x1180x2980
Presses Weight Ton	3	3.8	5.6	6.5
Die Cushion Capacity Ton	2.3	2.3	3.6	3.6
Die Cushion Effective Area mm²	300x230	300x230	350×300	450x310

Item	APA-110	APA-160	APA-160B	APA-200
Capacity Ton	110	160	160	200
Rated Tonnage Point mm	6	6	6	6
Speed Changing S.P.M.	30-60	20-50	20-50	20-50
Stable Speed S.P.M.	50	35	35	35
Stroke mm	180	200	200	200
Die Height mm	360	460	400	460
Slide Adjustment mm	80	100	100	110
Slide Area mm	650×470x80	700x550x90	700x550×90	850×630x90
Bolster Area mm	11150x600x110	1250x800×140	1250x760x140	1400×820×160
Shank Hole mm	50	60	60	60
Main Motor kW/P	11x4	15×4	15×4	18×4
Air Pressure Kg/cm²	6	6	6	6
Presses Dimension mm	1900x1300x3200	2315x1400x3670	2480x1460x3550	2615x1690x4075
Presses Weight Ton	9.6	16	14	23
Die Cushion Capacity Ton	6.3	10	10	14
Die Cushion Effective Area mm²	500×350	650×420	650x420	710×480

Item	APA-200B	APA-260	APA-260B	APA-315
Capacity Ton	200	260	260	315
Rated Tonnage Point mm	7	6	6	7
Speed Changing S.P.M.	20-50	22-40	20-50	20-40
Stable Speed S.P.M.	35	30	30	30
Stroke mm	200	250	200	250
Die Height mm	460	500	480	520
Slide Adjustment mm	100	120	110	120
Slide Area mm	850x550x90	950x700x100	950×630×90	950×700×100
Bolster Area mm	1350x820x140	1500x840x180	1500×820×160	1500x840x180
Shank Hole mm	60	60	60	60
Main Motor kW/P	18×4	22x4	22x4	30×4
Air Pressure Kg/cm²	6	6	6	6
Presses Dimension mm	2740x1620x3690	2780x1850x4470	2900x17800x4090	2780x1876x4490
Presses Weight Ton	19	32	26	34
Die Cushion Capacity Ton	10	14	14	14
Die Cushion Effective Area mm²	650x420	810x480	710×480	810x480

Product Advantages

Hydraulic overload protection pump

When the pressure of slider exceeds its specified pressure, the overload pump will relieve the pressure to protect the stressed part of press machine from damage.

Inverter

It works mainly for speed regulation, convenient for mold installation and trial by operators as well as machine maintenance.

Auto grease lubrication device

It works under PLC control, providing lubrication for guide rails, crankshaft bearing bush, etc. without manual interference, realizing automatic lubrication

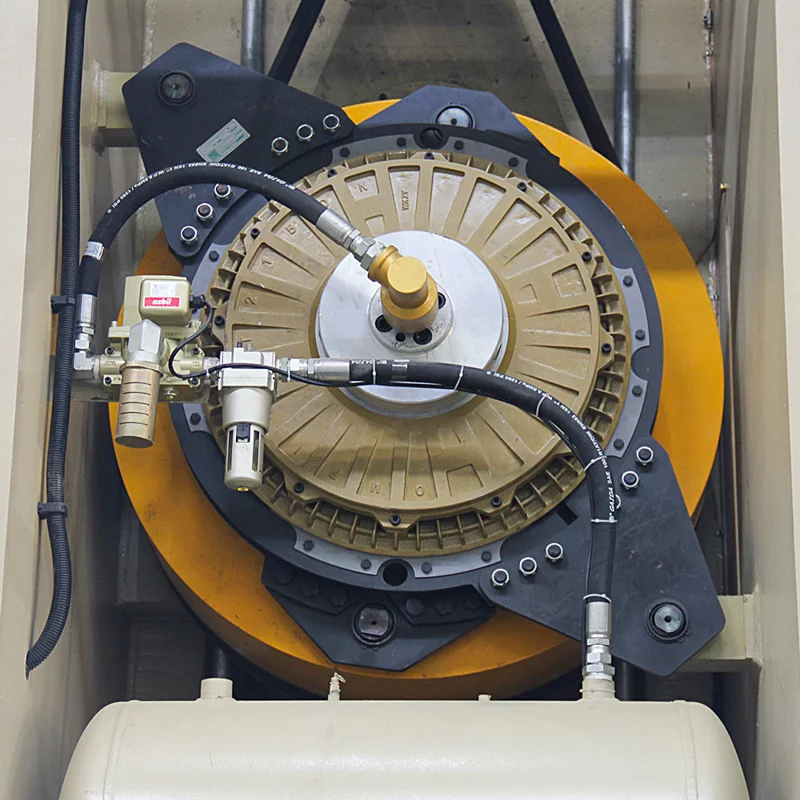

Clutch and brake integrated

The function of clutch and brake is to control the movement and stop of slider, its sensitivity directly relates to safety issues, it works on the purpose of protecting the operators and press machine.

Digital die height indicator

Balancer and clutch pressure meter

The pressure of overload protection pump is generally adjusted at 0.4MPa, clutch and brake pressure at 0.6MPa, balancer pressure at 0.4MPa.

Slide adjustment motor

The motor drives the slider, which moves up and down to adjust the distance between slider and working table. When the distance is adjusted well, motor stops working.

Touch screen ( APA 110 electric box with machine body together )

Multi language touch screen control system. It displays a series of press parameter, such as SPM (strokes per minute), electronic cam angle etc. You may set other corresponding data through this touch screen.

Hands operation panel ( Optional ) extra USD 500/set

When operators start the machine, they need to press the left and right buttons at the same time, which is to avoid potential safety risks when operators start the button while operating the machine.
